Manual Swing Handle Operator
Manual Wormgear Operators

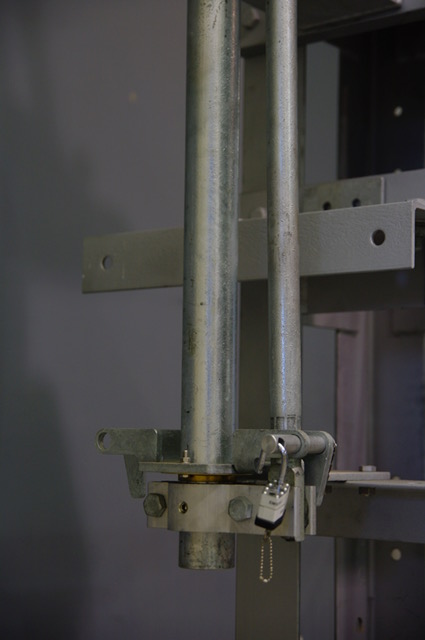

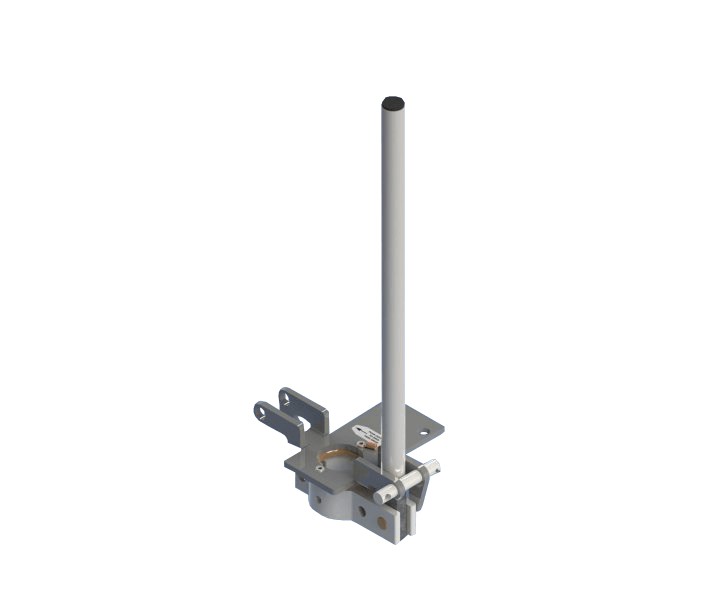

The swing handle operator is designed with simplicity in mind that makes it reliable and easy to operate. The swing handle, aka the torsion bar, is made from the highest quality materials. The support plate and handle are made from galvanized steel and the pipe clamp is machined from billet 6061-T6 aluminum. The guiding axel is made of high strength bronze. Padlockable in the open and close position, the handle locks in the upward position. This avoids the handle being buried in the snow.
Available Gear Ratios: RV801 – 80:1, RV402 – 40:1, RV204 – 20:1.
- Simple
- Robust
Key features of our Manual Wormgear Operators

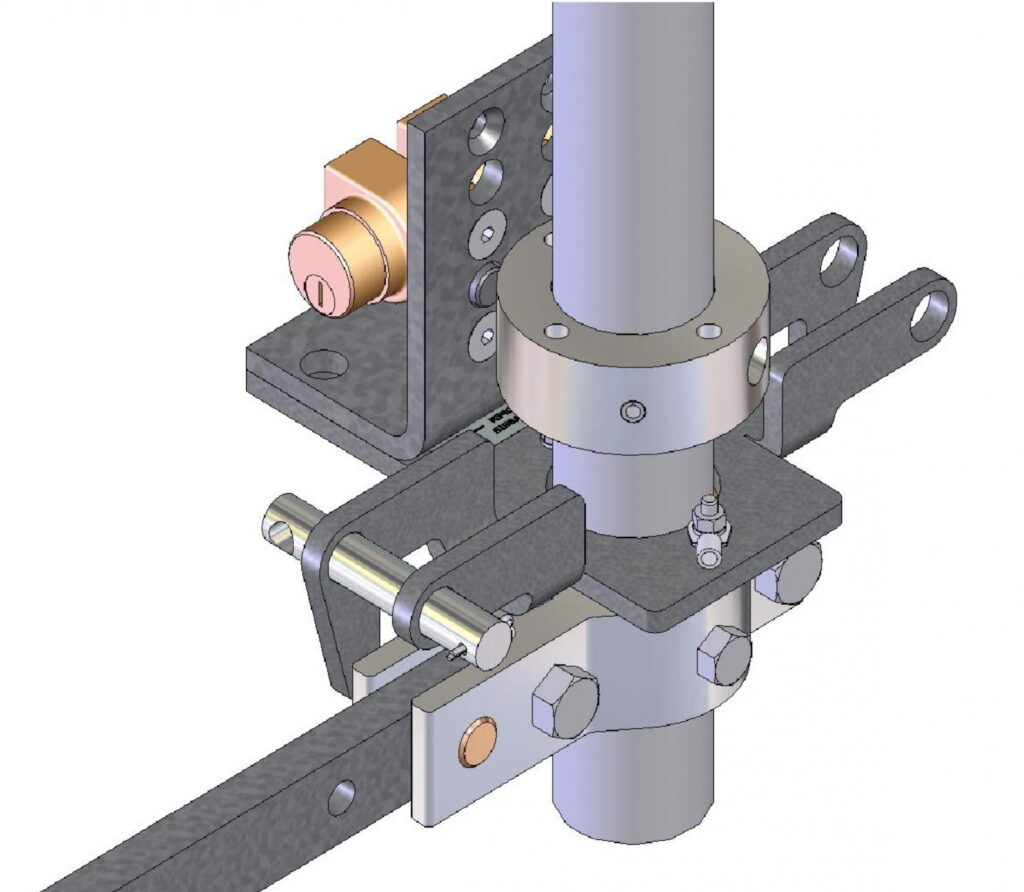

The operator comes with padlocking provisions as a standard and may be provided with optional trapped key interlocks. Up to two locks can be installed.

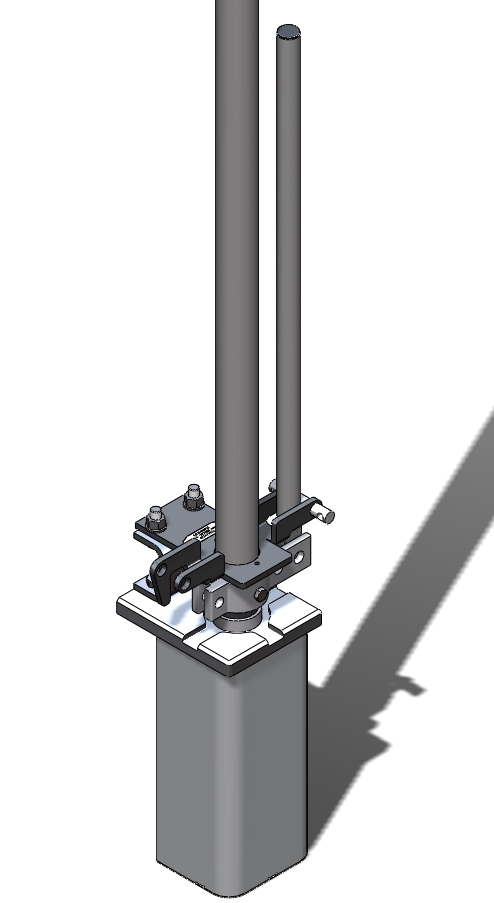

The swing handle operator auxiliary switch unit is directly inline with the output shaft. Each contact is fully field-adjustable. You have the choice of 10 or 20 contacts. The cover slides down to provide full access to the terminal blocks and contacts.
