SB813 Indoor Tilt Switch
SB813 Indoor Tilt Switch

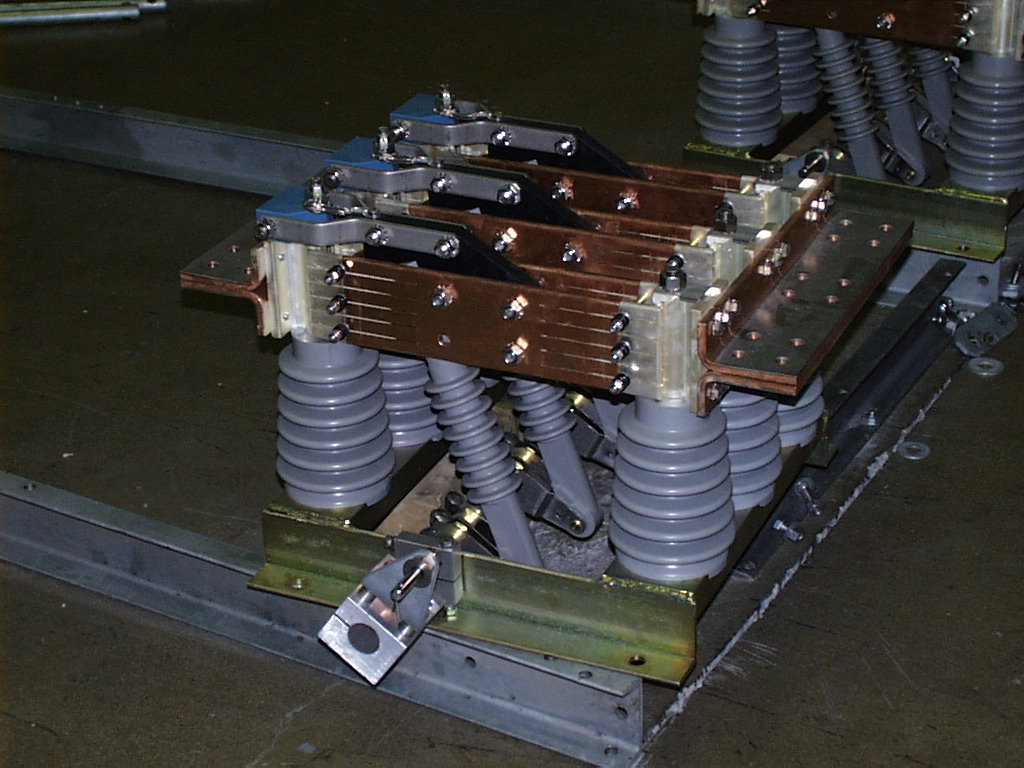

The SB813 is a simple, robust and very reliable indoor disconnect switch for metalclad switchgear or open frame mounting.
All parts are machined from solid billet materials, such as 304 stainless steel and hard drawn copper.
Ratings: 5kV-38kV, 600A-8000A
- Compact Design
- Easy Inspection / Maintenance
Key features of our SB813 Indoor Tilt Switch

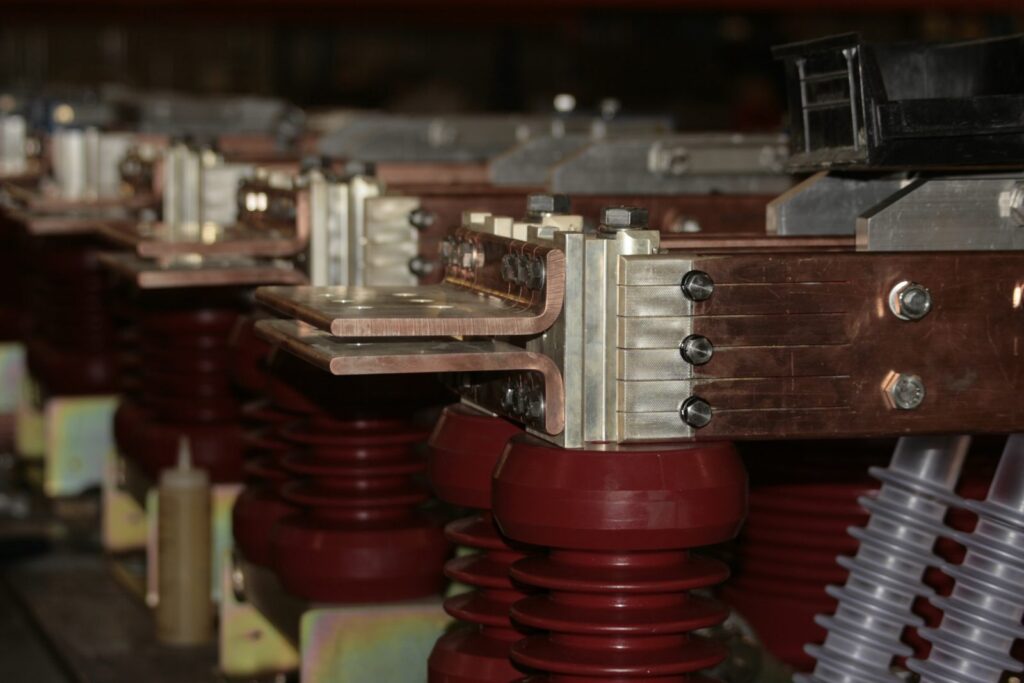

High strength yellow zinc plated steel base frame. High strength epoxy insulators & push rod. Twin blades made of high-conductivity copper. Moving and fixed contacts are made of silver plated hard drawn copper.
For high duty cycle applications where switches are required to operate 20 to 30 times in a day, EMSPEC has developed optional silver inlays. Please consult factory for more details.
The SB813 was designed to meet the most severe applications. Some industrial process plants require 6000 and 8000A switches, which EMSPEC is able to provide.
